Double Disc Refiner, a crucial component in pulp and paper production, plays a significant role in refining pulp to achieve the desired quality.
This article delves into the intricacies of double disc refining, exploring its history, working principle, applications, advantages, and much more.
Introduction to Double Disc Refiner

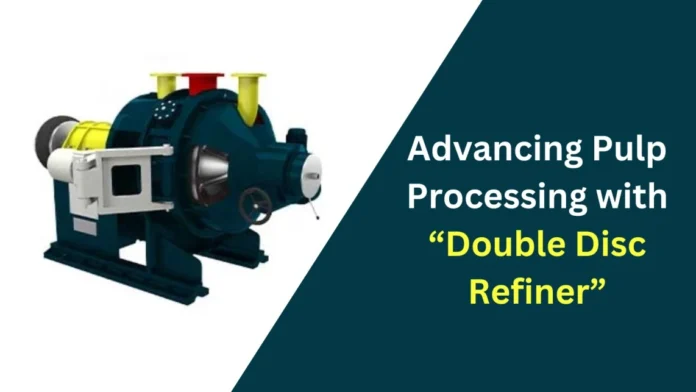

The double disc refiner is a mechanical device used in the pulp and paper industry for refining various types of pulp. It employs the principle of refining pulp by passing it through the narrow gap between two discs rotating in opposite directions.
The double disc refiner operation follows the process where the pulp is added through the input into the abrasive section of the double disc refiner machine. The refining discs are set in such a way that they rotate in opposite direction. There is a small gap between the discs where the pulp is pushed and refined in between the plates.
The refined pulp after fiber processing pushed out through an outlet pipe for further processing.
Components of Double Disc Refiner
- Discs
The discs are the central components of the double disc refiner, usually made of durable materials such as cast iron or stainless steel.
- Refining Zone
The refining zone is the space between the discs where the pulp undergoes refining. It is designed to optimize refining efficiency while minimizing energy consumption.
- Motor and Drive System
The motor and drive system provides the necessary power to rotate the discs at the desired speed, ensuring efficient refining.
Working Principle of Double Disc Refiner
Stock material is introduced into the abrasive section via an inlet pipe. Inside the abrasive section, the material undergoes a process of beating and refining. Once refined, it is pumped out of the abrasive section and directed into the shell. From there, it is discharged through an outlet pipe.
Advantages of Double Disc Refiner
- Enhanced pulp quality
- Increased production efficiency
- Versatility in refining different types of pulp
- Reduced energy consumption compared to other refining methods
Companies Manufacturing and Supplying Double Disc Refiner:
There are various companies in the world manufacturing and supplying the double disc refiner or the parts of double disc refiner. Though there is always a slight name difference due to the trademark, the function is always the same. Here are the top manufacturers supplying double disc refiners:
Andritz Double Disc Refiner:
Andritz is one of the top machine manufacturers. The ANDRITZ TwinFlo refiner is a double-disc refiner suitable for a wide range of fiber processing applications, including mechanical pulp, softwood and hardwood chemical pulp, and recycled fiber pulp.
This refiner offers an ideal solution for producing high-quality pulp at a competitive price point. Its straightforward and robust construction, coupled with a proven design, ensures exceptional reliability. Additionally, convenient access to the refiner for plate changes minimizes downtime and reduces maintenance costs. A variety of plate patterns are available, allowing for fine-tuning of the refining process to meet specific pulp requirements.
Benefits:
- Optimal utilization of fiber potential through the disc machine concept with spline shaft technology
- Cost reduction in both initial investment and ongoing maintenance
- Reliable operation ensured by a proven machine design
Parason Tri/Twin Disc Refiner
Parason Twin Disc Refiner is a double disc refiner. Parason TDR stands out for its compactness, robustness, advanced mechanism, and especially for its tailored bar designs, catering to specific applications. The TDR is a testament to ACCUMULATED PRECISION, setting it apart in the paper industry. With over 2000 installations in just 15 years, Parason refiners demonstrate unparalleled performance.
Key Features:
- Wide range of metallurgies tailored to meet industry requirements
- Availability of various patterns and bar designs
- The rapid development of custom-designed plates using CNC technology
- Continuous innovation in cost-effective materials and designs
- Parason is the premier source for Refiners and Refiner Plates
Cost of Double Disc Refiner
There are several manufacturing companies supplying double disc refiners with different quotations. According to the various market conditions, the spare parts, and the capacity, the double disc refiner machine cost varies.
Yet here is the approximate range of the pricing;
The double disc refiner costs from Rs. 10 Lac to Rs. 2 Cr (10” to 48”)
Maintenance of Double Disc Refiner
Regular maintenance of the double disc refiner is essential to ensure optimal performance and longevity. This includes routine inspection, lubrication, and replacement of worn-out components.
Troubleshooting Common Issues
Common issues encountered during the operation of double disc refiners include disc misalignment, excessive vibration, and pulp inconsistency. Addressing these issues promptly is crucial to minimize downtime and maintain productivity.
For any such troubleshooting, maintenance, degradation, or new refiner and other paper mill machinery requirements, you can contact us here and talk to an expert regarding your requirements.
Conclusion
In conclusion, the double disc refiner plays a pivotal role in enhancing pulp quality and optimizing production efficiency in the pulp and paper industry. Understanding its components, working principles, and applications is crucial for maximizing its benefits while addressing challenges effectively.
